Location

• Potentially located over the creek.
• 20’ span between the columns -> should allow for that.

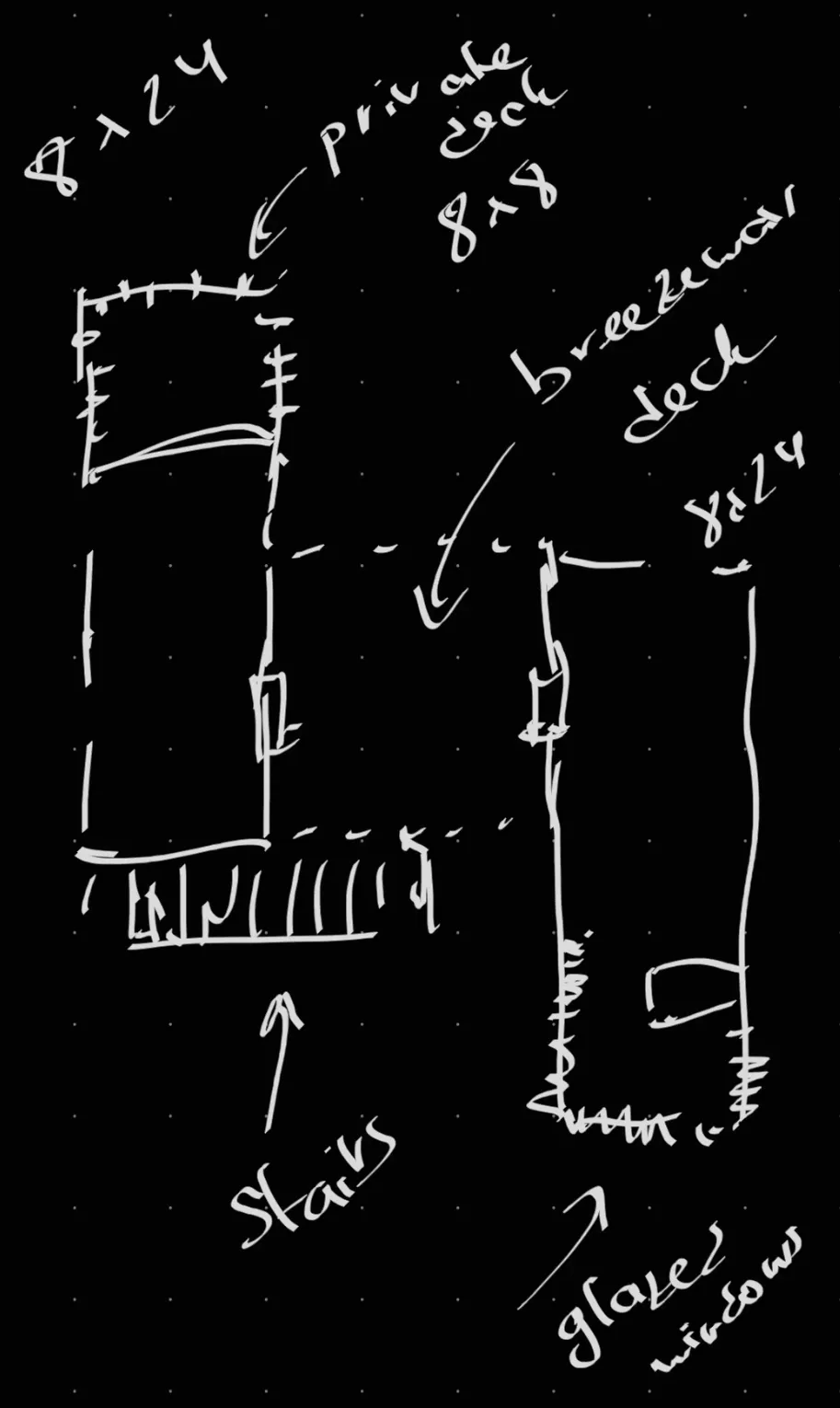

Layout

• Dual 8x24 areas
• A 12x12 deck in between (on ledger boards)
• 8x8 deck
• 8x8 solarium (window glazing)
• shared deck is fully glazed
• total area: 192 + 192 + 144 = 528 sqft

Foundation

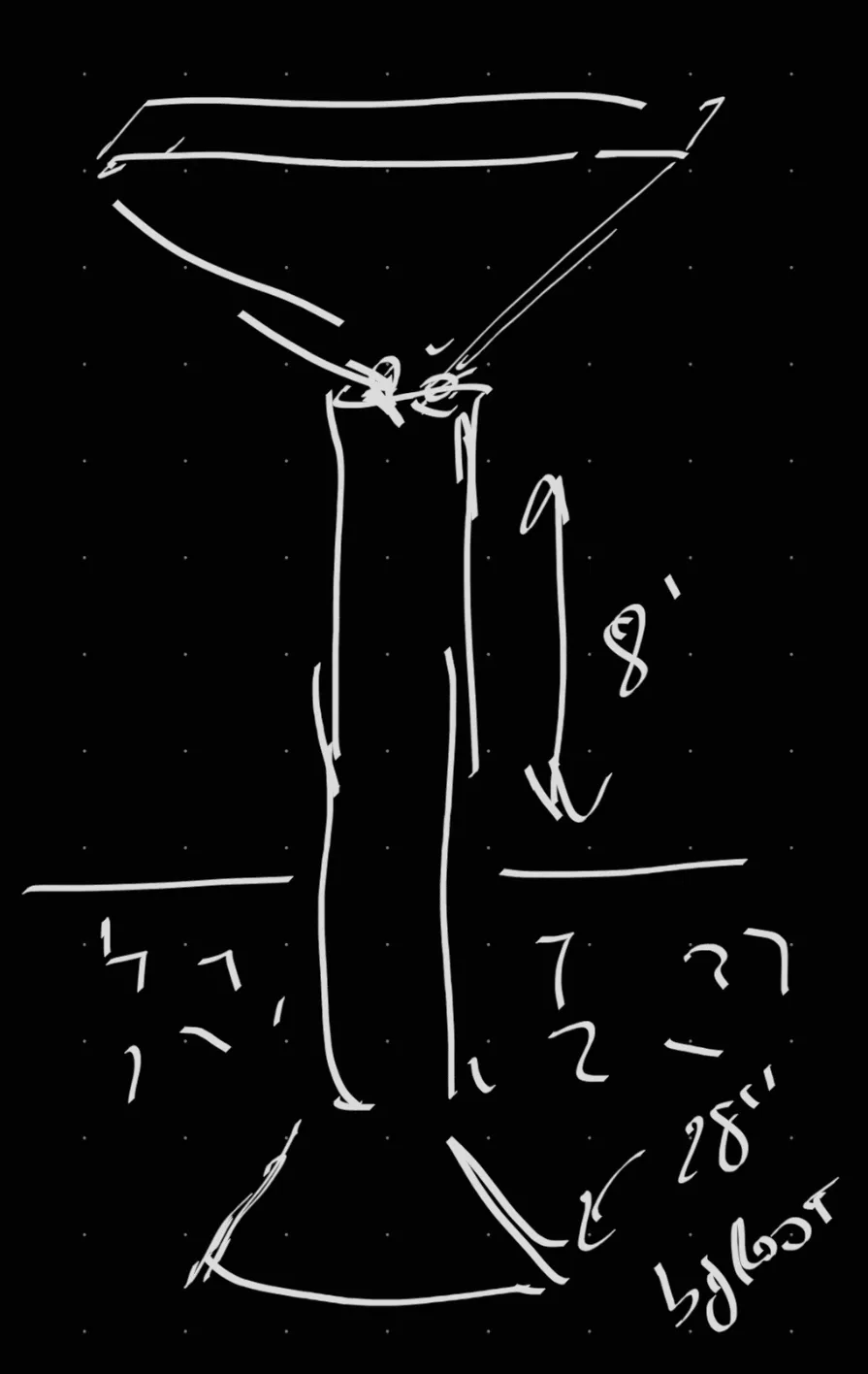

• Go up 8’ on the pillar.

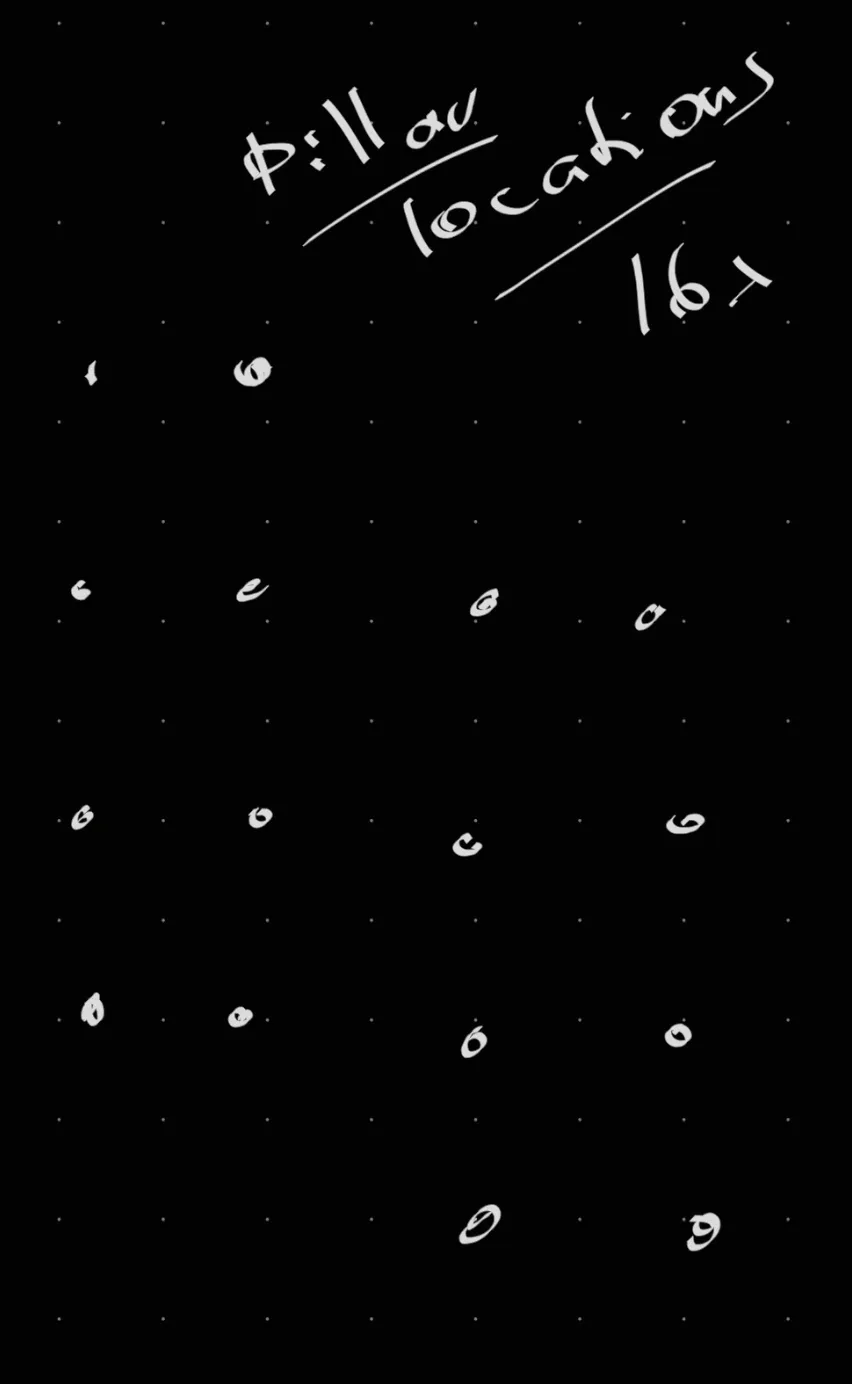

• Pillars spaced 8’ apart, for a 16’ girder beam boards to be spliced together.
• Clad pillars into masonry stamped concrete.
• Utilities come down near one (or two) of the pillars.

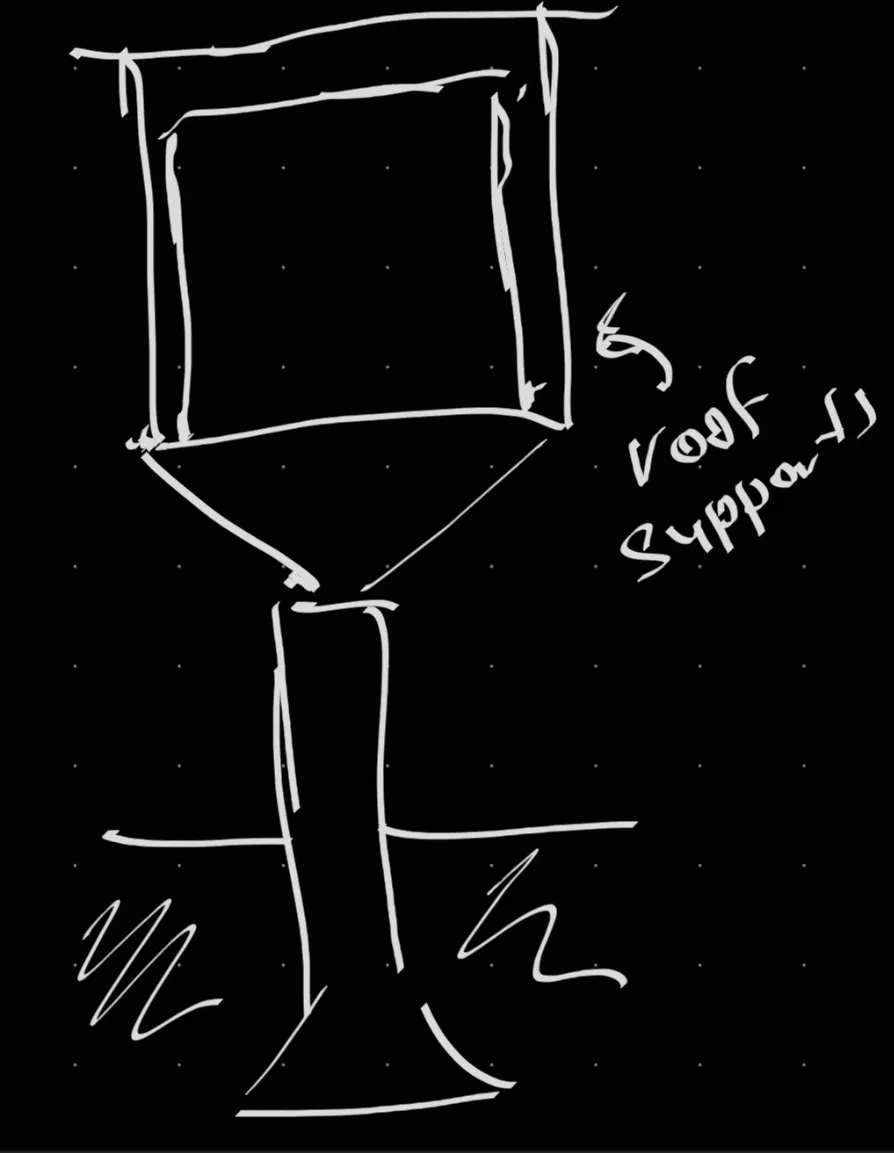

Roof

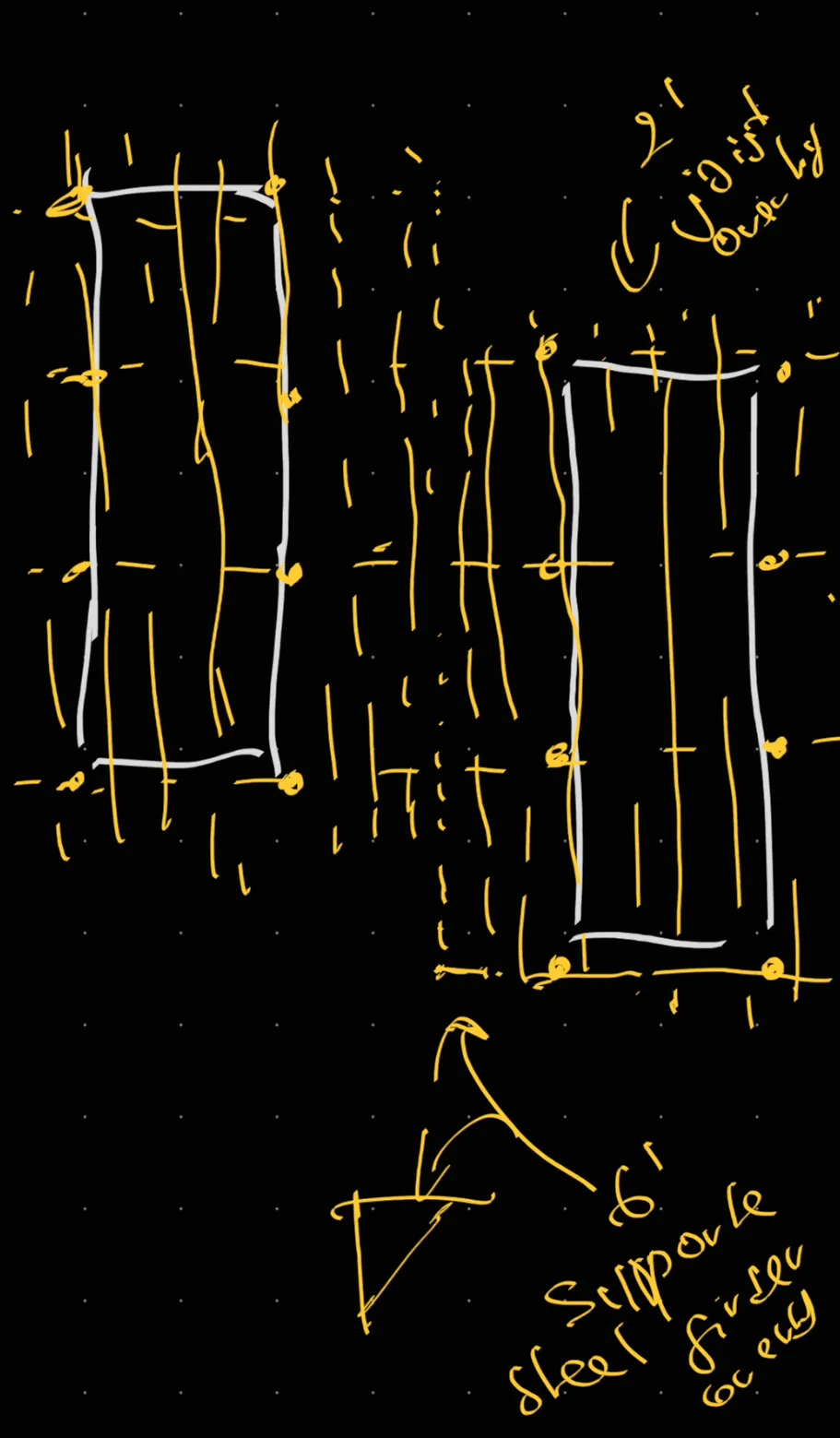

• 6’ knee-braced girder overhangs
• 2-4’ joist overhang

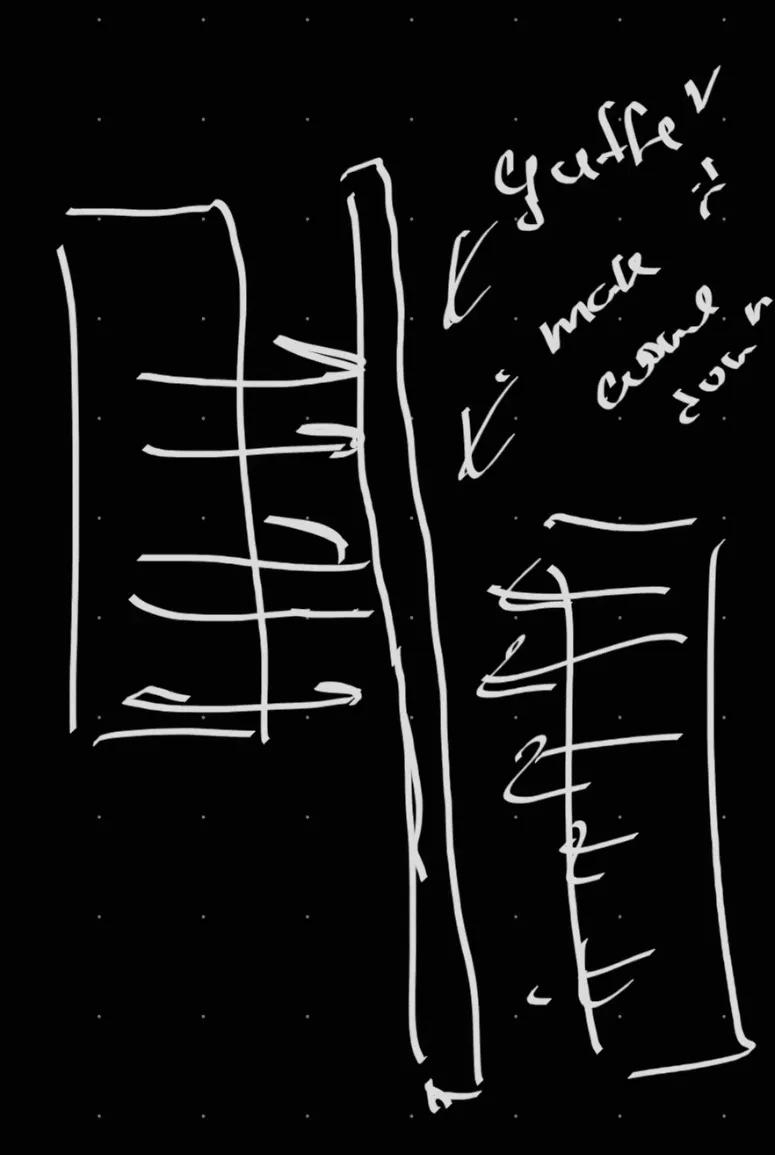

• can join in the middle gutter, and make a rain ladder down below
• secondary roof is metal on top, wood paneling underneath
