Summary of Conceptual Designs

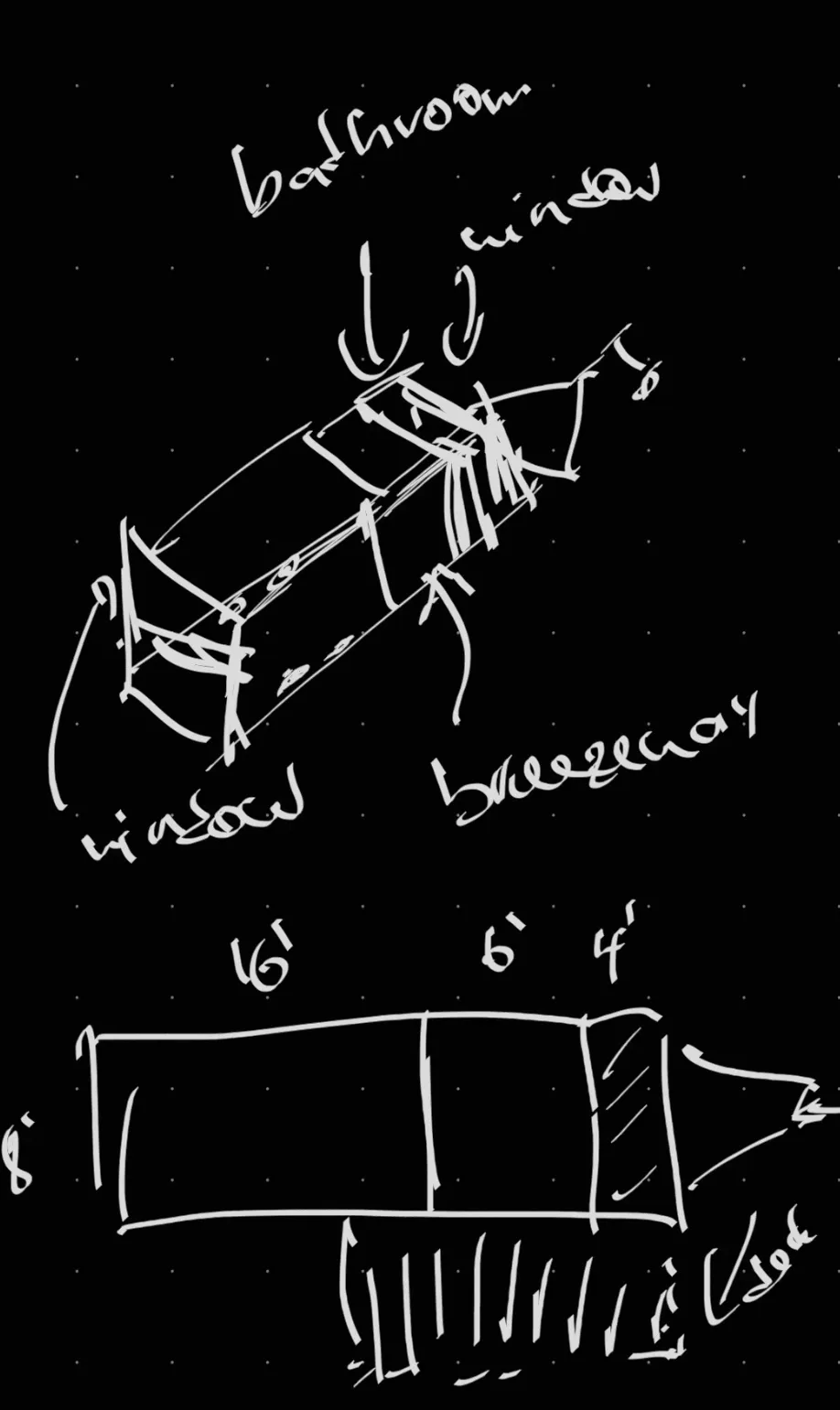

- 8x26, 208sqft, trailer tongue not included
- 4’ bathroom, 6’ breezeway, 16’ living space
- interior: 4” walls, 11” framing, 7’1” wall-to-wall
- height: 8.5” floor, 11.5” roof, 4’ trailer, 7’4” height = 13’ (spare 5”)
- designs to be parked at a deck with solar mount

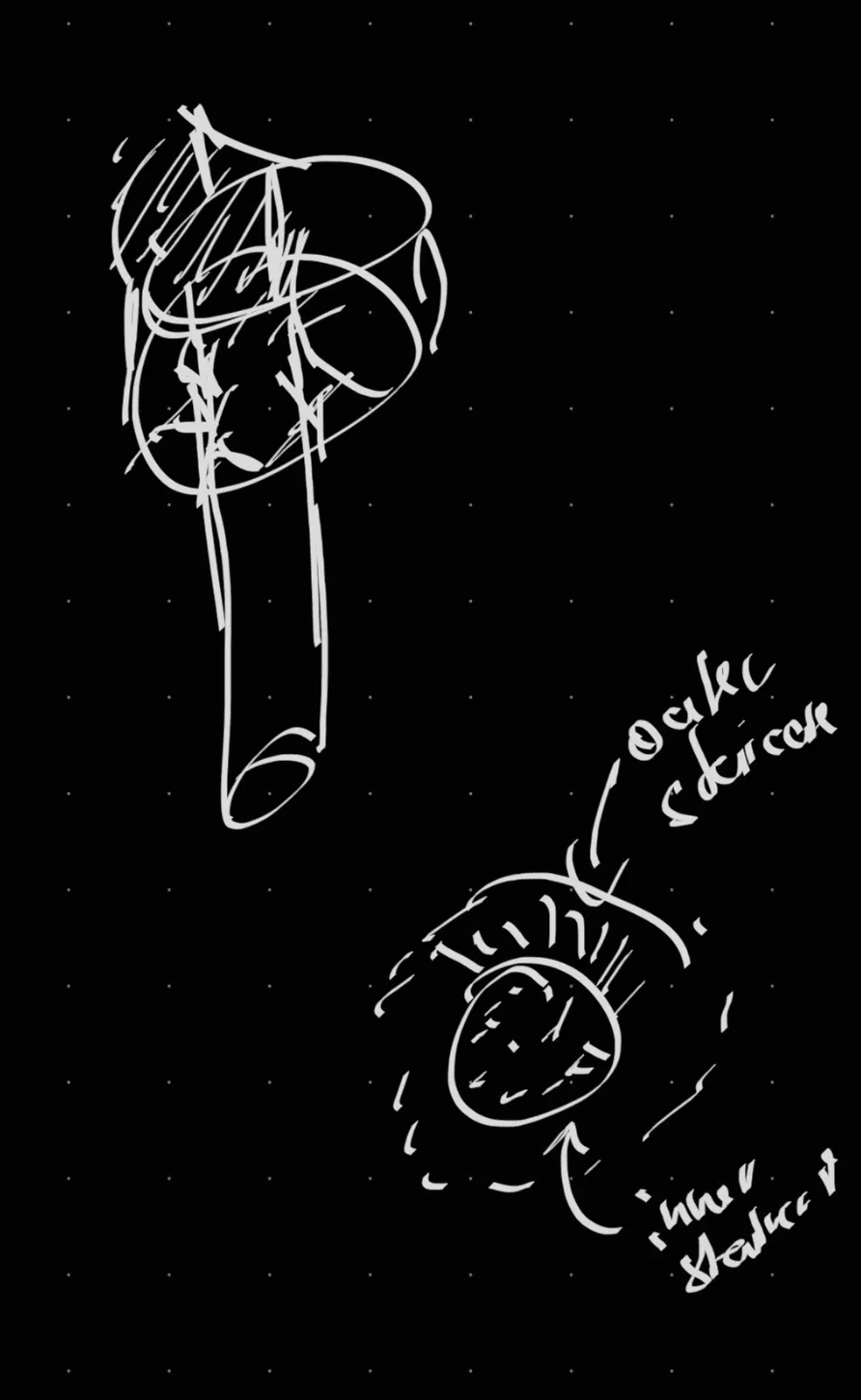

- tall monopillar design, with v-like support
- window glazing near main deck

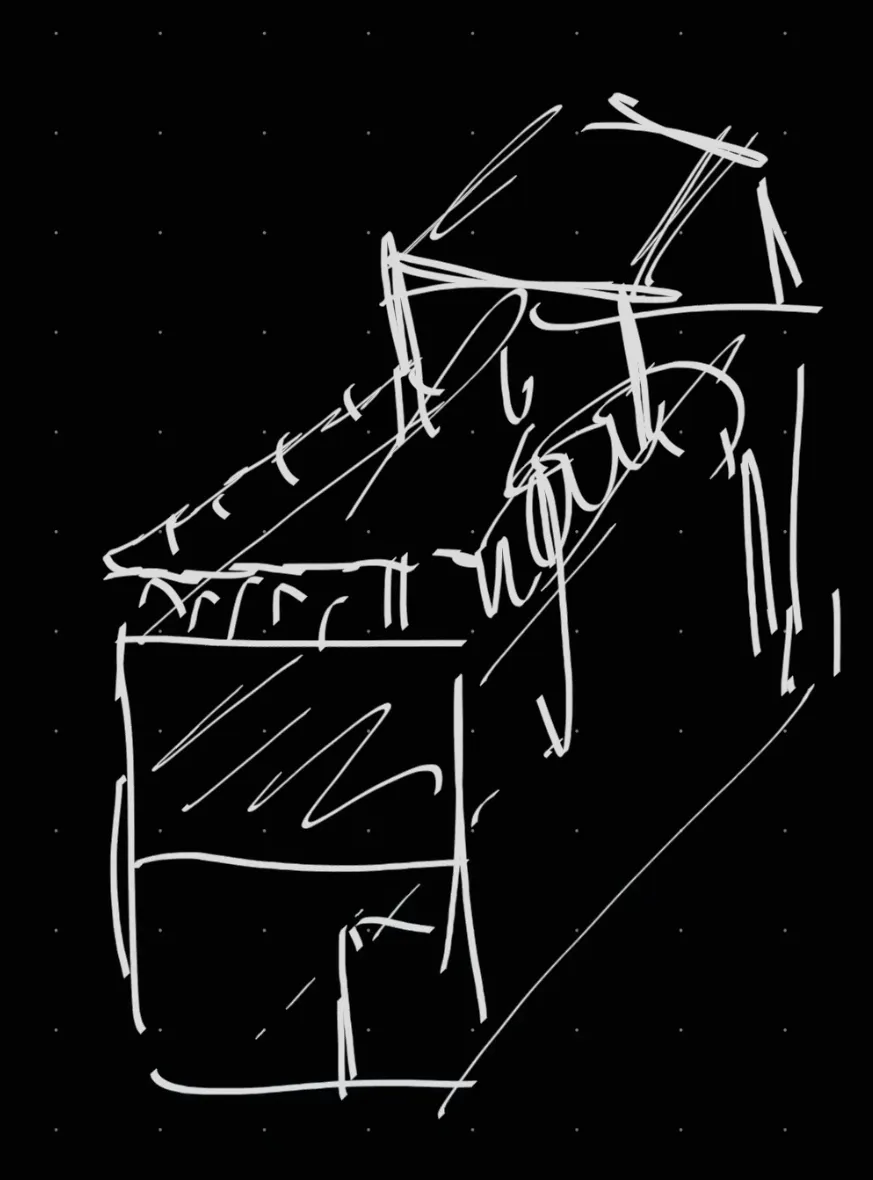

- separate roof, dual ‘roman’ incline inside
- private deck and solarium office
- utility shed at the bottom, with parking/garage

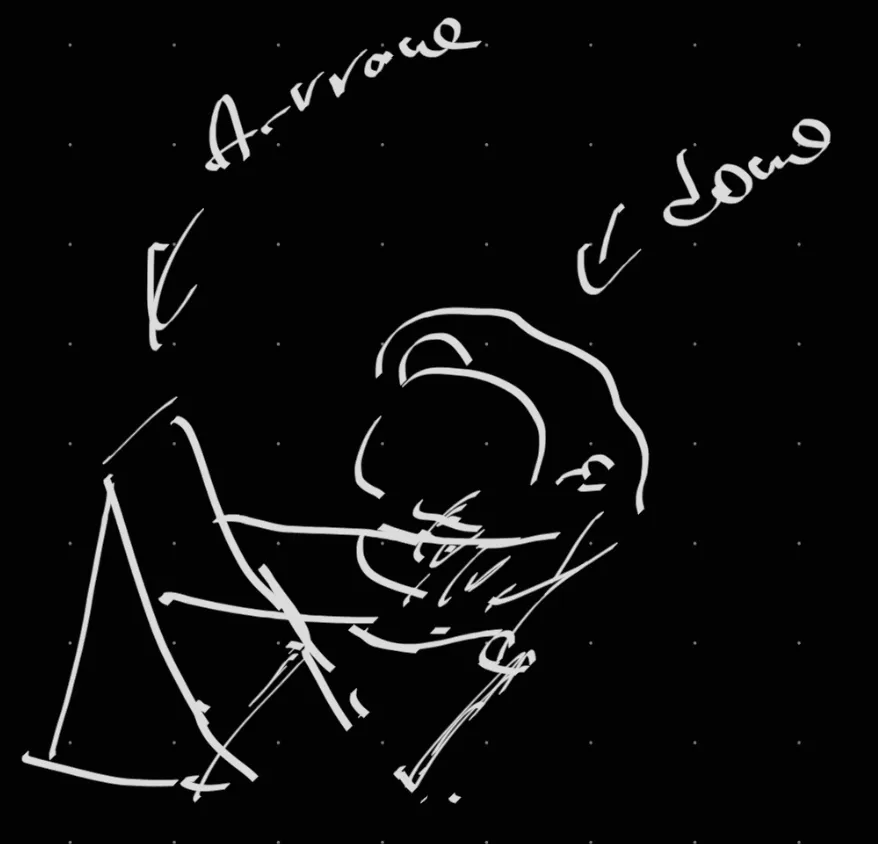

- knee-bracing to support top-level extensions
- built with specially prepped concrete mold forms
- rebar inserted
- inner staircase, that turns into outer staircase
- dual storie design with window glazing
- 2nd storie bedroom with half deck
- utility shed at the bottom, with parking/garage
- fully insulated concrete buildling
- designed for residential/industrial use
- large garage door

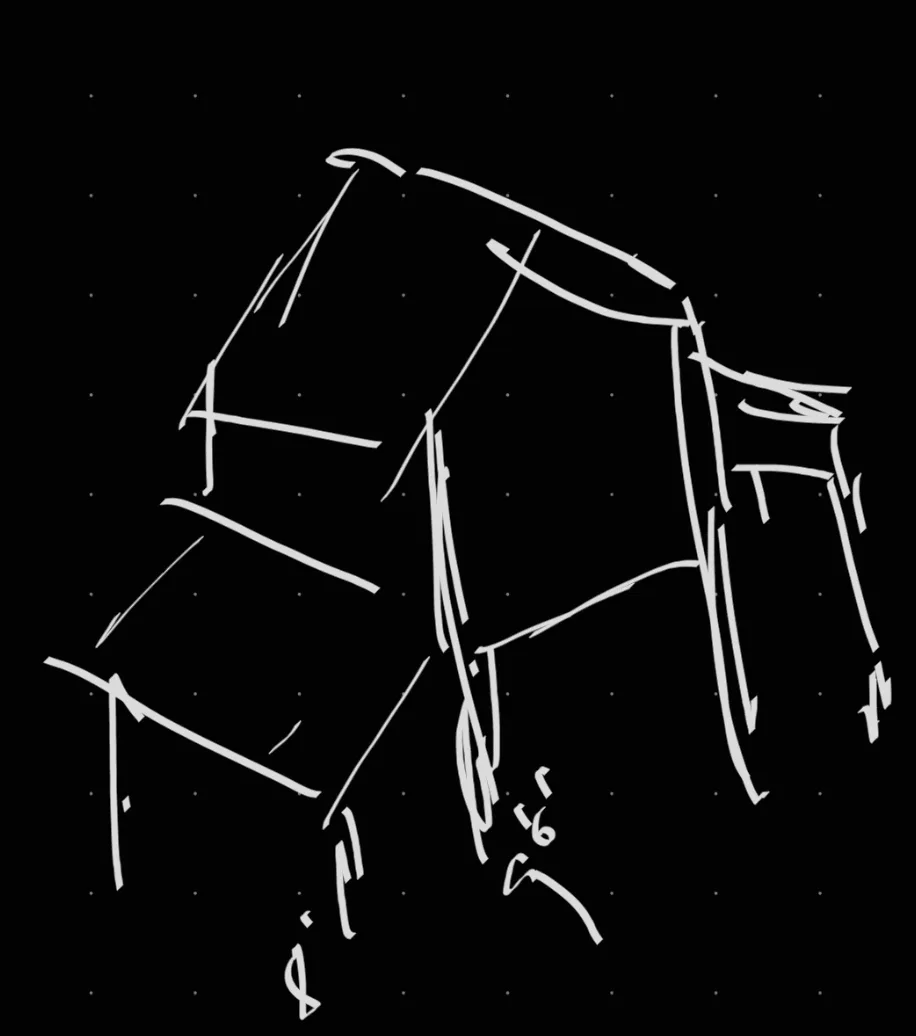

- half-stories, with bedroom on top
- continuous railing, stairs embedded into walls
- garden/bedroom on the top
- concrete floors, potentially with concrete footing
- use FPSF
- where columns are locaed, thicken the concrete
- timberframe
